Trailers Standard with Angle Top-Pipe Optional

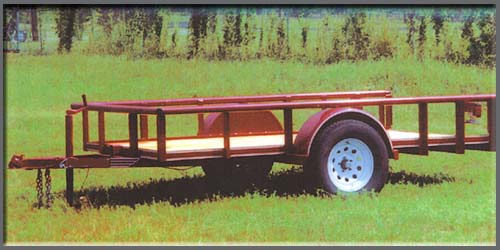

SINGLE AXLE FEATURES
GVAR 3500#           WHEELS 5 BOLT
GWAR 2995#           FLOORING 2" PINE
COUPLER 2"           JACK 2000#
TIRES 15"           FRAME 3x2
STANDARD SIZES

48"x8',   60"x8',   60"x10',   60"x12',   60"x13',
60"x14',   77"x8',   77"x10',   77"x12',   77"x14'

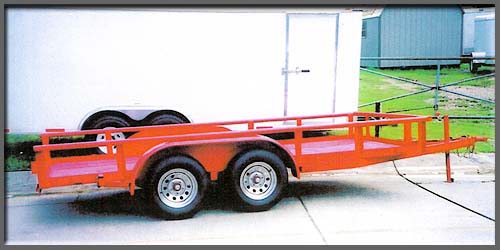

STANDARD DUTY FEATURES (2-3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 4500#           FLOORING 2" PINE
COUPLER 2"           JACK 2000#
TIRES 15"           FRAME 3x2
STANDARD SIZES

77"x10',   77"x12',   77"x14',   77"x16',   77"18',   77"x20'

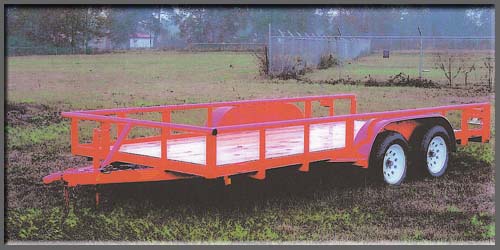

HEAVY DUTY FEATURES (2-3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 4500#           FLOORING 2" PINE
COUPLER 2"           JACK 2000#
TIRES 15"           FRAME 4x3
STANDARD SIZES

77"x10',   77"x12',   77"x14',   77"x16',   77"18',   77"x20'

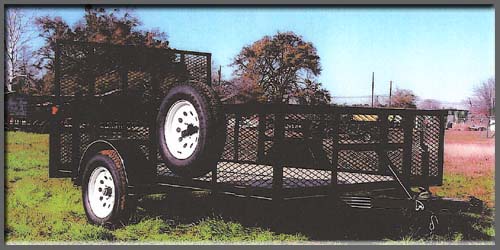

LANDSCAPE SINGLE AXLE FEATURES
GVAR 3500#           WHEELS 5 BOLT
GWAR 2995#           FLOORING 2" PINE
COUPLER 2"           JACK 2000#
TIRES 15"           FRAME 3x2
STANDARD SIZES

60"x10' (2' sides),   77"x10' (2' sides),   77"x12' (2' sides),
77"x10' (4' sides),   77"x12' (4' sides),   77"x14' (4' sides)

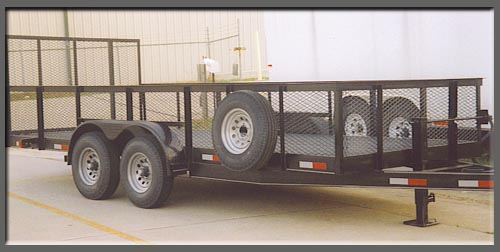

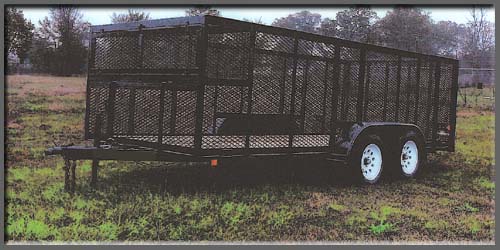

LANDSCAPE TANDEM AXLE FEATURES (2-3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 4500#           FLOORING 2" PINE
COUPLER 2"           JACK 2000#
TIRES 15"           FRAME 3x2
STANDARD SIZES

77"x10' (2' sides),   77"x12' (2' sides),   77"x14' (2' sides),
77"x16' (2' sides),   77"x18' (2' sides),   77"x20' (2' sides),
77"x10' (4' sides),   77"x12' (4' sides),   77"x14' (4' sides),
77"x16' (4' sides),   77"x18' (4' sides),   77"x20' (4' sides)






EXTRA DUTY I FEATURES (2-6000# AXLES)
GVAR 12000#           WHEELS 8 BOLT
GWAR 10200#           FLOORING 2" PINE
COUPLER 2 5/16" BULLDOG           JACK 10K DROPLEG
TIRES 16"           FRAME 5x3
BRAKES 1 AXLE ELECTRIC           RAMPS SLIDE-IN
STANDARD SIZES

82"x10',   82"x12',   82"x14',   82"x16',   82"18',   82"x20'

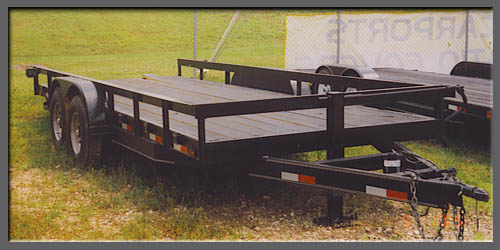

EXTRA DUTY II FEATURES (2-5200# AXLES)
GVAR 10400#           WHEELS 6 BOLT
GWAR 8600#           FLOORING 2" PINE
COUPLER 2 5/16"           JACK 2000#
TIRES 15"           FRAME 5x3
BRAKES 1 AXLE ELECTRIC           RAMPS SLIDE-IN
STANDARD SIZES

77"x10',   77"x12',   77"x14',   77"x16',   77"18',   77"x20'






STANDARD DUTY CAR HAULER FEATURES (2- 3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 4500#           FLOORING 2" PINE
COUPLER 2"           JACK 2000#
TIRES 15"           FRAME 5x3
RAMPS SLIDE-IN
STANDARD SIZES

82"x10',   82"x12',   82"x14',   82"x16',   82"18',   82"x20'


HEAVY DUTY CAR HAULER FEATURES (2-3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 4500#           FLOORING 2" PINE
COUPLER 2" BULLDOG           JACK 2000#
TIRES 15"           FRAME 5x3
RAMPS SLIDE-IN
STANDARD SIZES

82"x16',   82"18',   82"x20',   82"x22'

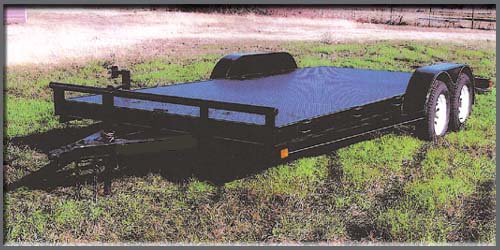

CUSTOM CAR HAULER FEATURES (2-3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 5000#           FLOORING 1/8" TREAD PLATE
COUPLER 2" BULLDOG           JACK 2000#
TIRES 15"           FRAME 5x3
RAMPS SLIDE-IN           BRAKE 1 AXLE ELECTRIC DOVETAIL
STANDARD SIZES

82"x16',   82"18',   82"x20',   82"x22'

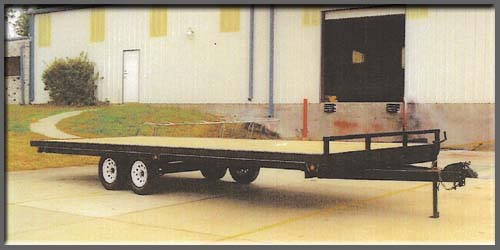

FLAT DECK HEAVY DUTY FEATURES (2-6000# AXLES)
GVAR 12000#           WHEELS 8 BOLT
GWAR 10200#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK 10000# DROPLEG
TIRES 16"           FRAME 8"
BRAKES 1 AXLE ELECTRIC
STANDARD SIZES

96"x12',   96"x14',   96"x16',   96"x18',   96"x18',   96"x20'


FLAT DECK HEAVY DUTY FEATURES (2-5200# AXLES)
GVAR 10400#           WHEELS 6 BOLT
GWAR 8600#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK 2000#
TIRES 15"           FRAME 6"
BRAKES 1 AXLE ELECTRIC
STANDARD SIZES

96"x12',   96"x14',   96"x16',   96"x18',   96"x18',   96"x20'






FLAT DECK STANDARD DUTY FEATURES (2-3500# AXLES)
GVAR 7000#           WHEELS 5 BOLT
GWAR 4500#           FLOORING 2" PINE
COUPLER 2" ADJUSTABLE           JACK 2000#
TIRES 15"           FRAME 5"
STANDARD SIZES

96"x12',   96"x14',   96"x16',   96"x18',   96"x18',   96"x20'

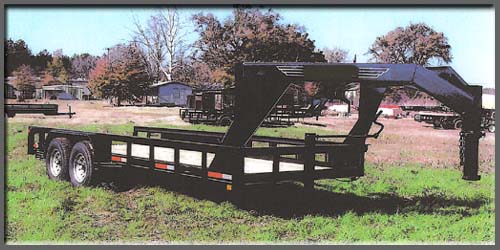

LOWBOY FEATURES (2-7000# ; 3-7000# AXLES)
GVAR 14000# ; 21000#           WHEELS 8 BOLT
GWAR 12000# ; 17400#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK 10000# DROPLEG
TIRES 16"           FRAME 6 IN. ; 8 IN. CHANNEL
BRAKES 2 AXLE ; 3 AXLE ELECTRIC           RAMPS SLIDE-IN OR FOLD UP
STANDARD SIZES

82"x18',   82"x20',   82"x22',   82"x24'





LOWBOY FEATURES (2-6000# ; 2-5200# AXLES)
GVAR 12000# ; 10400#           WHEELS 8 BOLT; 6 BOLT
GWAR 10000# ; 8400#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK 10000# DROPLEG
TIRES 16" ; 15"           FRAME 5x3
BRAKES 1 AXLE ELECTRIC           RAMPS SLIDE-IN
STANDARD SIZES

82"x16',   82"x18',   82"x20',   82"x22',   82"x24'

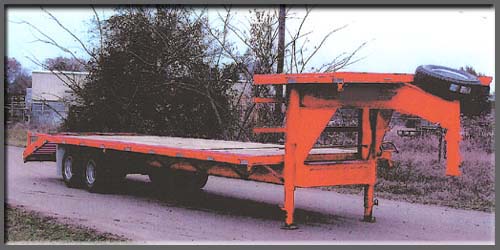

TANDEM DUAL FEATURES (2-10,000# AXLES)
GVAR 20000#           WHEELS
GWAR 16000#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK TWIN 2 SPEED
TIRES 16"           FRAME 12"
BRAKES ALL WHEEL ELECTRIC
STANDARD SIZES

96"x20',   96"x25',   96"x30',   96"x32',   96"x36',   96"x40'


TANDEM DUAL FEATURES (2-12,000# AXLES)
GVAR 24000#           WHEELS
GWAR 20000#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK TWIN 2 SPEED
TIRES 16"           FRAME 12"
BRAKES ALL WHEEL ELECTRIC
STANDARD SIZES

96"x20',   96"x25',   96"x30',   96"x32',   96"x36',   96"x40'

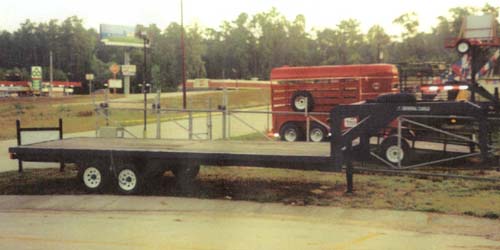

OVER THE WHEEL FEATURES
(2-5200#, 2-6,000# or 2-7000# AXLES)
GVAR 12000#           WHEELS
GWAR 10000#           FLOORING 2" PINE
COUPLER 2 5/16" ADJUSTABLE           JACK 10000# DROPLEG
TIRES 16"           FRAME 12"
BRAKES 1 AXLE ELECTRIC           SUSPENSION SLIPPER SPRINGS
AVAILABLE SIZES

96"x20',   96"x25',   96"x30',   96"x32'
